Installation Instructions

Installation: Step-by-step

1. Open door as far as possible (this makes it easier to work on)
2. Support the door. Use a wedge a block, shoe, or anything under the door so it will not move up or down, (this makes it easier to reinstall the hinge).
3. Remove the screws and hinge hardware. Either the jamb side, or door side. ZZem screws can be used on either!
4. Drill out the existing screw hole. Use a smaller drill bit for the pilot hole, this helps with accuracy. Mark the provided 5/16” drill bit at 3”, then drill to the 3” mark. Set the drill to low speed, take your time.
5. Screw in the ZZem Screw. Use the provided Torx bit. Use a power drill when installing, set to a low speed. Screw in the ZZem Screw until it's just below the surface.
6. Replace your hinge using the provided #9 hinge screws. Use a Phillip’s bit (included), and make sure to set the clutch on the drill so you do not strip the head of the screw.

ZZem Screw is also designed to use the same #9 hinge screw that comes with your hardware, we supply a brass finish with our kits. The #9 hinge screw is available at most all hardware stores (or online) in all finishes that will match your hardware finish.

How to tell if your hardware uses a #9 screw, the head of the screw measures a hair over 5/16” (.330”)

ZZem Screw is for wood and wood byproducts only.

How does it work?

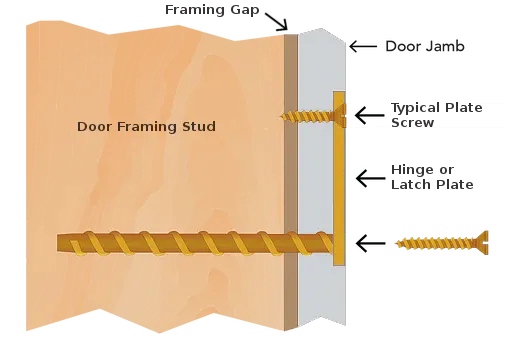

See the graphic below which illustrates how the ZZem Screw (bottom) dramatically increases the depth of attachment of the hinge or strike-plate to the door frame. ZZem Screw can be used to reinforce hinges, strike plates, deadbolts, and more.
